Toyota Prius: Q810 Hybrid Transaxle Fluid

*1

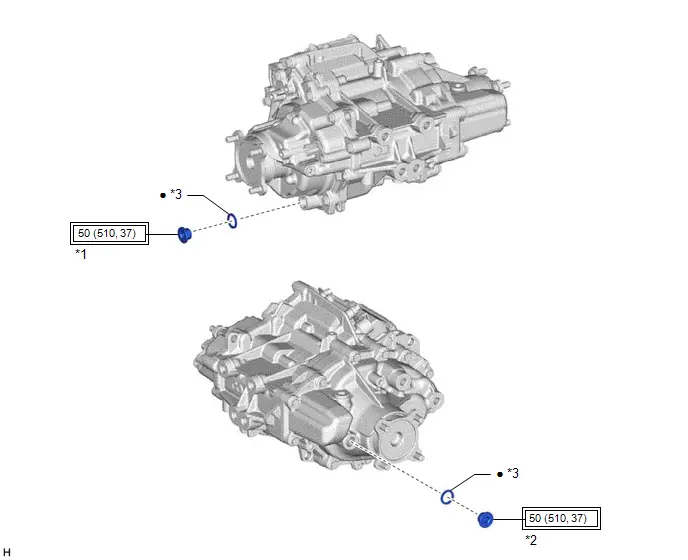

DRAIN PLUG

*2

FILLER PLUG

*3

GASKET

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

●

Non-reusable part

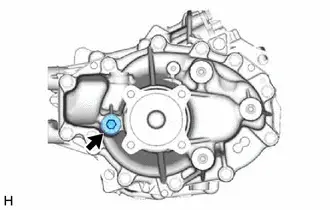

(b) Using a 10 mm hexagon socket wrench, remove the filler plug and gasket from the rear traction motor with transaxle assembly.

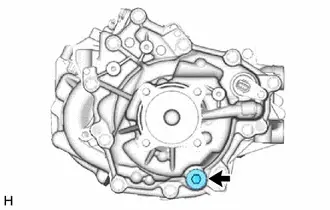

(c) Using a 10 mm hexagon socket wrench, remove the drain plug and gasket from the rear traction motor with transaxle assembly and drain the hybrid transaxle fluid.

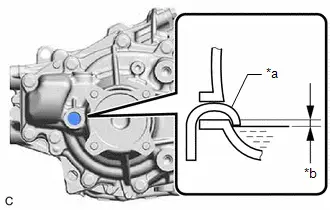

(e) Add hybrid transaxle fluid until the hybrid transaxle fluid level is between 0 to 5 mm (0 to 0.197 in.) from the bottom lip of the filler plug opening. [#]

Hybrid Transaxle Fluid Standard Capacity (for Reference):

1.4 liters (1.5 US qts, 1.2 Imp. qts)

NOTICE:

• Use TOYOTA GENUINE e-Transaxle Fluid TE.

  Using hybrid transaxle fluid other than the above type may cause abnormal noise or vibration, or ultimately damage the transaxle of the vehicle.

• Be sure to fully insert the filler nozzle into the filler plug opening.
• Be sure to add hybrid transaxle fluid slowly. If hybrid transaxle fluid is added quickly, the hybrid transaxle fluid may hit internal parts and bounce back, resulting in hybrid transaxle fluid coming out of the filler plug opening.
• Be sure to directly check that the hybrid transaxle fluid level is within the specified range.
• Driving the vehicle with an insufficient or excessive amount of hybrid transaxle fluid may damage the rear traction motor with transaxle assembly.

(g) Using a 10 mm hexagon socket wrench, install a new gasket and the filler plug to the rear traction motor with transaxle assembly.

Torque:

50 N·m {510 kgf·cm, 37 ft·lbf}
