Toyota Prius (XW60) 2023-2025 Service Manual / Vehicle Interior / Seat / Power Seat Switch

Removal
Inspection
Installation

Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front power seat switch assembly removal/installation are shown below.

CAUTION:

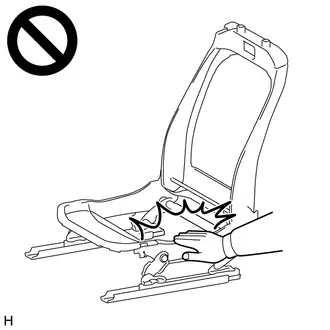

Wear protective gloves. Sharp areas on the parts may injure your hands.

CAUTION / NOTICE / HINT

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when Toyota Prius vehicle is driven

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Front Camera System	Drive the Toyota Prius vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.

Learning completes when vehicle is operated normally

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
1: w/o Power Back Door System 2: w/ Power Back Door System
Power Door Lock Control System*1 Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.
Power Back Door System*2	Reset back door close position
Air Conditioning System	for HEV Model: After the ignition switch is turned to ON, the servo motor standard position is recognized. for PHEV Model: After the ignition switch is turned to ON, the servo motor and expansion valve standard position is recognized.	-

CAUTION / NOTICE / HINT

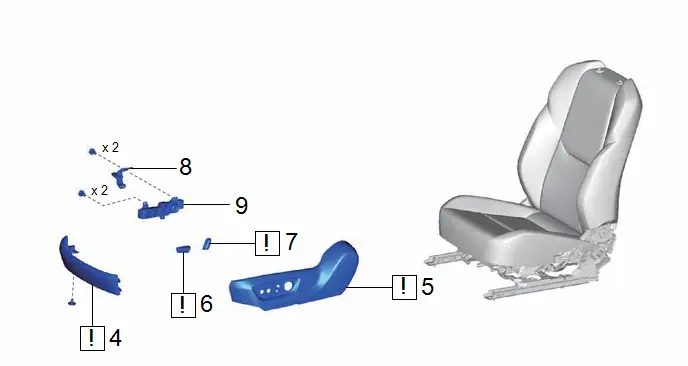

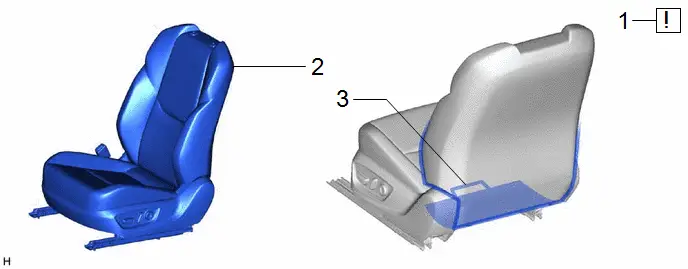

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	PRECAUTION	-		-	-
2	FRONT SEAT ASSEMBLY	-	-	-	-
3	DISCONNECT SEPARATE TYPE FRONT SEATBACK COVER	71074S	-	-	-

Procedure		Part Name Code
4	FRONT SEAT FRONT CUSHION SHIELD	71868N		-	-
5	FRONT SEAT CUSHION SHIELD	71812D		-	-
6	SLIDE AND VERTICAL POWER SEAT SWITCH KNOB	-		-	-
7	RECLINING POWER SEAT SWITCH KNOB	-		-	-
8	SEAT ADJUSTER SHIELD CLAMP BRACKET	72714	-	-	-
9	FRONT POWER SEAT SWITCH	84922C	-	-	-

PROCEDURE

1. PRECAUTION

NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click here

2. REMOVE FRONT SEAT ASSEMBLY

Click here

3. DISCONNECT SEPARATE TYPE FRONT SEATBACK COVER

Click here

4. REMOVE FRONT SEAT FRONT CUSHION SHIELD

Click here

5. REMOVE FRONT SEAT CUSHION SHIELD

Click here

6. REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB

Click here

7. REMOVE RECLINING POWER SEAT SWITCH KNOB

Click here

8. REMOVE SEAT ADJUSTER SHIELD CLAMP BRACKET

Click here

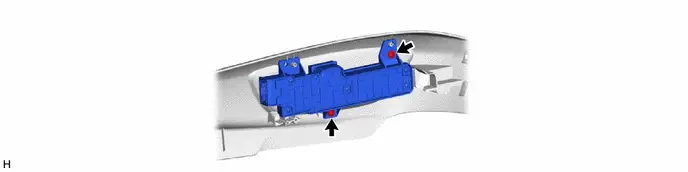

9. REMOVE FRONT POWER SEAT SWITCH

Inspection

INSPECTION

PROCEDURE

1. INSPECT FRONT POWER SEAT SWITCH LH (w/o Memory)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Click Location & Routing(b15) Click Connector(b15)

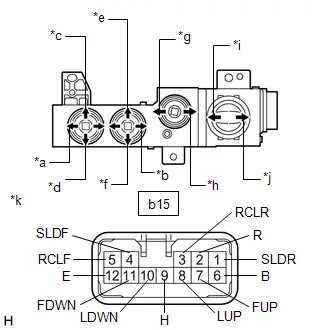

Tester Connection	Condition	Specified Condition	Result
b15-4(SLDF) - b15-6(B)	Slide switch pressed (Front)	Below 1 Ω	Ω
b15-4(SLDF) - b15-6(B)	Off	10 kΩ or higher	kΩ
b15-4(SLDF) - b15-12(E)	Slide switch pressed (Front)	10 kΩ or higher	kΩ
b15-4 (SLDF) - b15-12 (E)	Off	Below 1 Ω	Ω
b15-1 (SLDR) - b15-6 (B)	Slide switch pressed (Rear)	Below 1 Ω	Ω
b15-1 (SLDR) - b15-6 (B)	Off	10 kΩ or higher	kΩ
b15-1 (SLDR) - b15-12 (E)	Slide switch pressed (Rear)	10 kΩ or higher	kΩ
b15-1 (SLDR) - b15-12 (E)	Off	Below 1 Ω	Ω
b15-7 (FUP) - b15-6(B)	Front vertical switch pressed (Up)	Below 1 Ω	Ω
b15-7 (FUP) - b15-6(B)	Off	10 kΩ or higher	kΩ
b15-7 (FUP) - b15-12 (E)	Front vertical switch pressed (Up)	10 kΩ or higher	kΩ
b15-7 (FUP) - b15-12 (E)	Off	Below 1 Ω	Ω
b15-11 (FDWN) - b15-6 (B)	Front vertical switch pressed (Down)	Below 1 Ω	Ω
b15-11 (FDWN) - b15-6 (B)	Off	10 kΩ or higher	kΩ
b15-11 (FDWN) - b15-12 (E)	Front vertical switch pressed (Down)	10 kΩ or higher	kΩ
b15-11 (FDWN) - b15-12 (E)	Off	Below 1 Ω	Ω
b15-8 (LUP) - b15-6 (B)	Lifter switch pressed (Up)	Below 1 Ω	Ω
b15-8 (LUP) - b15-6 (B)	Off	10 kΩ or higher	kΩ
b15-8 (LUP) - b15-12 (E)	Lifter switch pressed (Up)	10 kΩ or higher	kΩ
b15-8 (LUP) - b15-12 (E)	Off	Below 1 Ω	Ω
b15-10 (LDWN) - b15-6 (B)	Lifter switch pressed (Down)	Below 1 Ω	Ω
b15-10 (LDWN) - b15-6 (B)	Off	10 kΩ or higher	kΩ
b15-10 (LDWN) - b15-12 (E)	Lifter switch pressed (Down)	10 kΩ or higher	kΩ
b15-10 (LDWN) - b15-12 (E)	Off	Below 1 Ω	Ω
b15-5 (RCLF) - b15-6 (B)	Reclining switch pressed (Front)	Below 1 Ω	Ω
b15-5 (RCLF) - b15-6 (B)	Off	10 kΩ or higher	kΩ
b15-5 (RCLF) - b15-12 (E)	Reclining switch pressed (Front)	10 kΩ or higher	kΩ
b15-5 (RCLF) - b15-12 (E)	Off	Below 1 Ω	Ω
b15-3 (RCLR) - b15-6 (B)	Reclining switch pressed (Rear)	Below 1 Ω	Ω
b15-3 (RCLR) - b15-6 (B)	Off	10 kΩ or higher	kΩ
b15-3 (RCLR) - b15-12 (E)	Reclining switch pressed (Rear)	10 kΩ or higher	kΩ
b15-3 (RCLR) - b15-12 (E)	Off	Below 1 Ω	Ω
b15-9 (H) - b15-6 (B)	Lumbar support switch pressed (Hold)	Below 1 Ω	Ω
b15-9 (H) - b15-6 (B)	Off	10 kΩ or higher	kΩ
b15-9 (H) - b15-12 (E)	Lumbar support switch pressed (Hold)	10 kΩ or higher	kΩ
b15-9 (H) - b15-12 (E)	Off	Below 1 Ω	Ω
b15-2 (R) - b15-6 (B)	Lumbar support switch pressed (Release)	Below 1 Ω	Ω
b15-2 (R) - b15-6 (B)	Off	10 kΩ or higher	kΩ
b15-2 (R) - b15-12 (E)	Lumbar support switch pressed (Release)	10 kΩ or higher	kΩ
b15-2 (R) - b15-12 (E)	Off	Below 1 Ω	Ω

If the result is not as specified, replace the front power seat switch LH.

*a	Slide Switch (Front)
*b	Slide Switch (Rear)
*c	Front Vertical Switch (Up)
*d	Front Vertical Switch (Down)
*e	Lifter Switch (Up)
*f	Lifter Switch (Down)
*g	Reclining Switch (Front)
*h	Reclining Switch (Rear)
*i	Lumbar Support Switch (Hold)
*j	Lumbar Support Switch (Release)
*k	Component without harness connected (Front Power Seat Switch LH)

2. INSPECT FRONT POWER SEAT SWITCH LH (w/ Memory)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

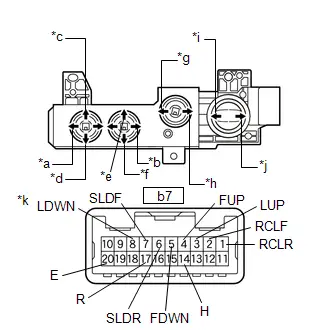

Click Location & Routing(b7) Click Connector(b7)

Tester Connection	Condition	Specified Condition	Result
b7-7 (SLDF) - b7-20 (E)	Slide switch pressed (Front)	Below 1 Ω	Ω
b7-7 (SLDF) - b7-20 (E)	Off	10 kΩ or higher	kΩ
b7-6 (SLDR) - b7-20 (E)	Slide switch pressed (Rear)	Below 1 Ω	Ω
b7-6 (SLDR) - b7-20 (E)	Off	10 kΩ or higher	kΩ
b7-4 (FUP) - b7-20 (E)	Front vertical switch pressed (Up)	Below 1 Ω	Ω
b7-4 (FUP) - b7-20 (E)	Off	10 kΩ or higher	kΩ
b7-5 (FDWN) - b7-20 (E)	Front vertical switch pressed (Down)	Below 1 Ω	Ω
b7-5 (FDWN) - b7-20 (E)	Off	10 kΩ or higher	kΩ
b7-3 (LUP) - b7-20 (E)	Lifter switch pressed (Up)	Below 1 Ω	Ω
b7-3 (LUP) - b7-20 (E)	Off	10 kΩ or higher	kΩ
b7-8 (LDWN) - b7-20 (E)	Lifter switch pressed (Down)	Below 1 Ω	Ω
b7-8 (LDWN) - b7-20 (E)	Off	10 kΩ or higher	kΩ
b7-2 (RCLF) - b7-20 (E)	Reclining switch pressed (Front)	Below 1 Ω	Ω
b7-2 (RCLF) - b7-20 (E)	Off	10 kΩ or higher	kΩ
b7-1 (RCLR) - b7-20 (E)	Reclining switch pressed (Rear)	Below 1 Ω	Ω
b7-1 (RCLR) - b7-20 (E)	Off	10 kΩ or higher	kΩ
b7-14 (H) - b7-20 (E)	Lumbar support switch pressed (Hold)	Below 1 Ω	Ω
b7-14 (H) - b7-20 (E)	Off	10 kΩ or higher	kΩ
b7-17 (R) - b7-20 (E)	Lumbar support switch pressed (Release)	Below 1 Ω	Ω
b7-17 (R) - b7-20 (E)	Off	10 kΩ or higher	kΩ

If the result is not as specified, replace the front power seat switch LH.

*a	Slide Switch (Front)
*b	Slide Switch (Rear)
*c	Front Vertical Switch (Up)
*d	Front Vertical Switch (Down)
*e	Lifter Switch (Up)
*f	Lifter Switch (Down)
*g	Reclining Switch (Front)
*h	Reclining Switch (Rear)
*i	Lumbar Support Switch (Hold)
*j	Lumbar Support Switch (Release)
*k	Component without harness connected (Front Power Seat Switch LH)

Installation

INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.

CAUTION / NOTICE / HINT

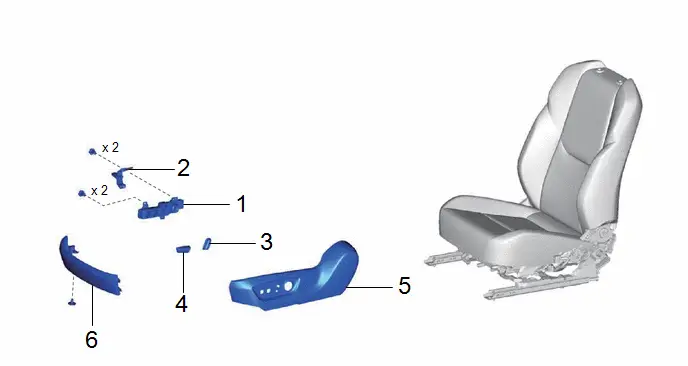

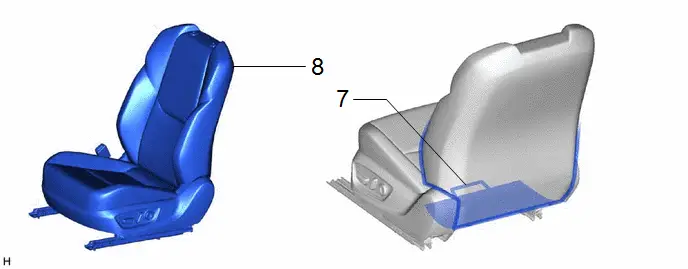

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	FRONT POWER SEAT SWITCH	84922C	-	-	-
2	SEAT ADJUSTER SHIELD CLAMP BRACKET	72714	-	-	-
3	RECLINING POWER SEAT SWITCH KNOB	-	-	-	-
4	SLIDE AND VERTICAL POWER SEAT SWITCH KNOB	-	-	-	-
5	FRONT SEAT CUSHION SHIELD	71812D	-	-	-
6	FRONT SEAT FRONT CUSHION SHIELD	71868N	-	-	-
