| Component to Inspect | Procedure |
| Horn button assembly |
-

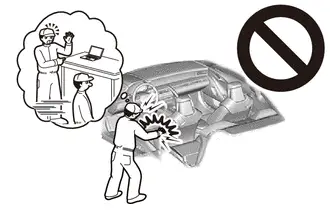

Perform a diagnostic system check.
-
Visually check for defects with the horn button assembly removed from the Toyota Prius vehicle.
HINT: The defects are as follows:
-
The airbag has deployed
-
Cuts on the surface or in the grooves
-
Small cracks on the surface or in the grooves
-
Significant discoloration on the surface or in the grooves
-
Cracks or other damage to the connector
-
Deformation of the steering wheel assembly
-
Deformation of the installation surface of the horn button assembly
-
Interference or uneven clearance between the horn button assembly and steering wheel assembly when a new horn button assembly is installed to the steering wheel assembly
OK: No defects are found. If any defects are found, replace the horn button assembly or steering wheel assembly with a new one.
|
| Lower No. 1 instrument panel airbag assembly |
-
Perform a diagnostic system check.
-
Visually check for defects with the lower No. 1 instrument panel airbag assembly removed from the Toyota Prius vehicle.
HINT: The defects are as follows:
-
The airbag has deployed
-
Cuts
-
Small cracks
-
Significant discoloration
-
Cracks or other damage to the connector
-
Deformation or cracks on the No. 1 instrument panel brace sub-assembly, No. 3 instrument panel to cowl brace sub-assembly or instrument panel sub-assembly
OK: No defects are found. If any defects are found, replace the lower No. 1 instrument panel airbag assembly, No. 1 instrument panel brace sub-assembly, No. 3 instrument panel to cowl brace sub-assembly or instrument panel sub-assembly with a new one.
|
| Instrument panel passenger airbag assembly |
-
Perform a diagnostic system check.
-
Visually check for defects with the instrument panel passenger airbag assembly removed from the Toyota Prius vehicle.
HINT: The defects are as follows:
-
The airbag has deployed
-
Cuts
-
Small cracks
-
Significant discoloration
-
Cracks or other damage to the connector
-
Deformation or cracks on the instrument panel sub-assembly or instrument panel reinforcement assembly
OK: No defects are found. If any defects are found, replace the instrument panel passenger airbag assembly, instrument panel sub-assembly or instrument panel reinforcement assembly with a new one.
|
| Curtain shield airbag assembly |
-
Perform a diagnostic system check.
-
Visually check for defects with the curtain shield airbag assemblies removed from the Toyota Prius vehicle.
HINT: The defects are as follows:
-
The airbag has deployed
-
Cuts
-
Small cracks
-
Significant discoloration
-
Cracks or other damage to the connector
OK: No defects are found. If any defects are found, replace the curtain shield airbag assembly with a new one.
|
| Front seat airbag assembly |
-
Perform a diagnostic system check.
-
Visually check for defects with the front seat airbag assemblies removed from the Toyota Prius vehicle.
HINT: The defects are as follows:
-
The airbag has deployed
-
Scratches, broken or frayed threads on the surface of the base fabric of the front seat airbag assemblies
-
Marks from being dropped
-
Deformation of the installation surface of the front seat airbag assemblies
-
Cracks or other damage to the wire harness or connector
OK: No defects are found. If any defects are found, replace the front seat airbag assembly with a new one.
|
| Rear seat airbag assembly |
-
Perform a diagnostic system check.
-
Visually check for defects with the rear seat airbag assemblies removed from the Toyota Prius vehicle.
HINT: The defects are as follows:
-
Cuts
-
Small cracks
-
Significant discoloration
-
Cracks or other damage to the connector
OK: No defects are found. If any defects are found, replace the rear seat airbag assembly with a new one.
|
| Front seat outer belt assembly |
-
Perform a diagnostic system check.
-
Visually check for defects with the front seat outer belt assembly removed from the Toyota Prius vehicle.
HINT: The defects are as follows:
-
The seat belt pretensioner has deployed
-
Cuts
-
Small cracks
-
Significant discoloration
-
Cracks or other damage to the connector
OK: No defects are found. If any defects are found, replace the front seat outer belt assembly with a new one.
|
| Rear seat outer belt assembly |
-
Perform a diagnostic system check.
-
Visually check for defects with the rear seat outer belt assembly removed from the Toyota Prius vehicle.
HINT: The defects are as follows:
-
The seat belt pretensioner has deployed
-
Cuts
-
Small cracks
-
Significant discoloration
-
Cracks or other damage to the connector
OK: No defects are found. If any defects are found, replace the rear seat outer belt assembly with a new one.
|
| Airbag ECU assembly |
-
for Airbag that has not Deployed:
-
Perform a diagnostic system check.
-
Visually check for defects with the airbag ECU assembly installed to the Toyota Prius vehicle.
HINT: The defects are as follows:
-
Cracks on the ECU housing
-
Dents on the ECU housing
-
Chips on the ECU housing
-
Cracks or other damage to the connector
-
Peeling of the label
OK: No defects are found. If any defects are found, replace the airbag ECU assembly with a new one.
-
for Airbag that has Deployed:
-
Replace the airbag ECU assembly.
HINT: The airbag ECU assembly should be replaced after any of the SRS parts has deployed, as it has been subjected to an impact.
|
-
Front airbag sensor
-
Side airbag pressure sensor
-
Floor side airbag sensor
|
-
Perform a diagnostic system check.
-
When airbags have deployed as the result of a collision, be sure to replace all airbag sensors in the damaged areas (anywhere in need of repair).
-
Visually check the airbag sensors in undamaged areas for defects.
HINT: The defects are as follows:
-
Cracks in the sensor housing
-
Dents in the sensor housing
-
Chips in the sensor housing
-
Cracks or other damage to the connector
-
Damage to the serial number
-
Damage to the waterproof rubber seal
OK: No defects are found. If any defects are found or an airbag sensor has detected a major collision, replace the airbag sensor with a new one.
|
| Harness and connector |
-
Perform a diagnostic system check.
-
Check any wire harnesses in exposed contact with the airbag wire harness for damage.
-
Check the connector of the airbag wire harness for scratches, cracks or damage.
|
