Toyota Prius: Digital Key Receiver (for Outside Luggage Compartment)
Removal
REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during ble luggage digital key receiver assembly removal/installation are shown below.
Necessary Procedure After Parts Removed/Installed/Replaced| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| BLE luggage digital key receiver assembly | Code registration |
|
|
NOTICE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.
Click here
HINT:
When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
- Items for which learning is completed by driving the Toyota Prius vehicle
Effect/Inoperative Function When Necessary Procedures are not Performed
Necessary Procedures
Link
Front Camera System
Drive the Toyota Prius vehicle straight ahead at 35 km/h (22 mph) or more for 5 second or more.
- Items for which learning is completed by operating the vehicle normally
Effect/Inoperative Function When Necessary Procedures are not Performed
Necessary Procedures
Link
*1: w/o Power Back Door System *2: w/ Power Back Door System
Power Door Lock Control System*1
- Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.
Power Back Door System*2
Reset back door close position
Air Conditioning System
for HEV Model:- After the ignition switch is turned to ON, the servo motor standard position is recognized.
for PHEV Model:- After the ignition switch is turned to ON, the servo motor and expansion valve standard position is recognized.
-
CAUTION / NOTICE / HINT

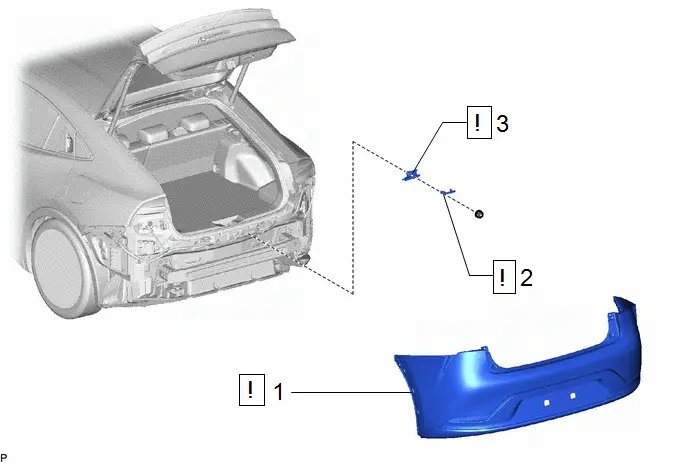

COMPONENTS (REMOVAL)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | REAR BUMPER ASSEMBLY | - |
| - | - |
| 2 | ELECTRICAL KEY ANTENNA | 89997 |
| - | - |
| 3 | BLE LUGGAGE DIGITAL KEY RECEIVER ASSEMBLY | 890F0 |
| - | - |
PROCEDURE
1. REMOVE REAR BUMPER ASSEMBLY
| Click here
|
2. REMOVE ELECTRICAL KEY ANTENNA
| Click here
|

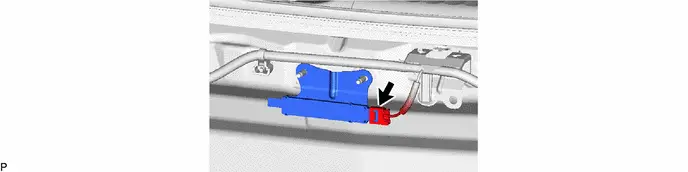

3. REMOVE BLE LUGGAGE DIGITAL KEY RECEIVER ASSEMBLY
| NOTICE: Be careful when removing the digital key receiver. If the digital key receiver is dropped, replace it with a new one. |
Installation
INSTALLATION
CAUTION / NOTICE / HINT

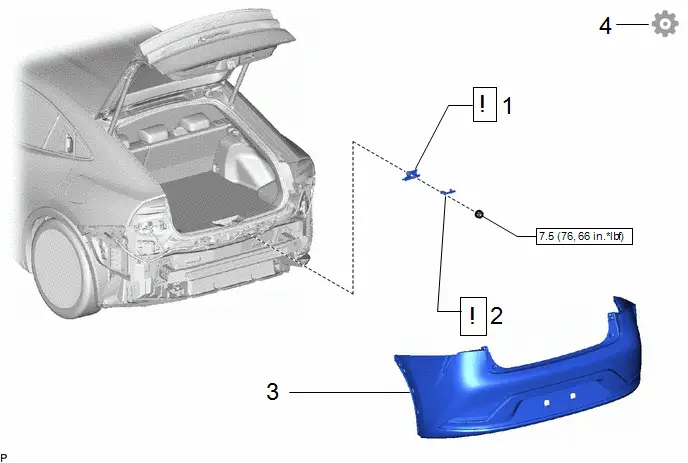

COMPONENTS (INSTALLATION)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | BLE LUGGAGE DIGITAL KEY RECEIVER ASSEMBLY | 890F0 |
| - | - |
| 2 | ELECTRICAL KEY ANTENNA | 89997 |
| - | - |
| 3 | REAR BUMPER ASSEMBLY | - | - | - | - |
| 4 | REGISTRATION DIGITAL KEY ECU | - | - | - |
|
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
PROCEDURE
1. INSTALL BLE LUGGAGE DIGITAL KEY RECEIVER ASSEMBLY
| NOTICE: Be careful when installing the digital key receiver. If the digital key receiver is dropped, replace it with a new one. |
Torque:
7.5 N·m {76 kgf·cm, 66 in·lbf}
2. INSTALL ELECTRICAL KEY ANTENNA
| Click here
|
3. INSTALL REAR BUMPER ASSEMBLY
Click here
4. REGISTRATION DIGITAL KEY SYSTEM
Click here
