Toyota Prius: Crankshaft Position Sensor

Removal

REMOVAL

CAUTION / NOTICE / HINT

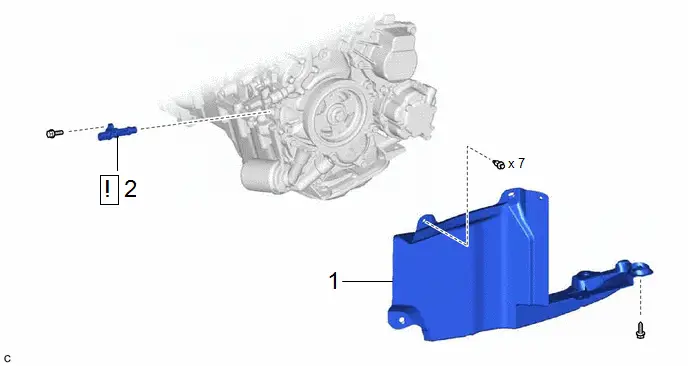

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	REAR ENGINE UNDER COVER RH	51443C	-	-	-
2	CRANKSHAFT POSITION SENSOR	11401G		-	-

PROCEDURE

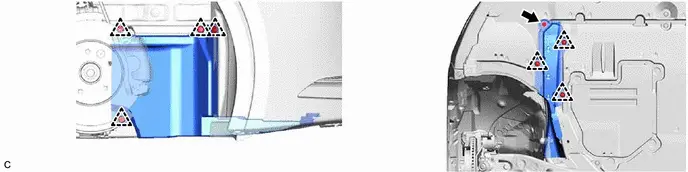

1. REMOVE REAR ENGINE UNDER COVER RH

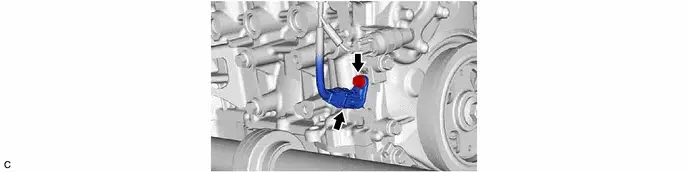

2. REMOVE CRANKSHAFT POSITION SENSOR

NOTICE: If the crankshaft position sensor has been struck or dropped, replace it.

Installation

INSTALLATION

CAUTION / NOTICE / HINT

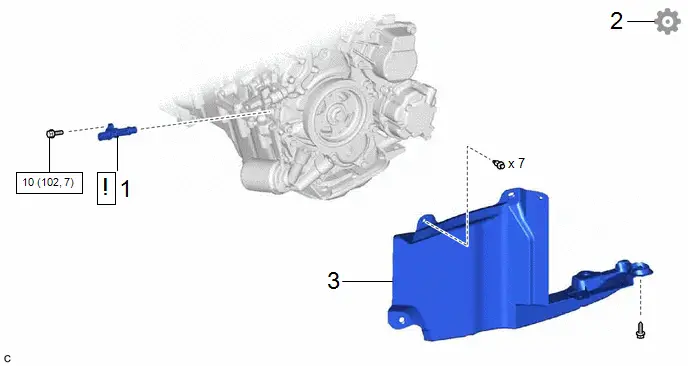

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	CRANKSHAFT POSITION SENSOR	11401G		-	-
2	INSPECT FOR ENGINE OIL LEAK	-	-	-
3	REAR ENGINE UNDER COVER RH	51443C	-	-	-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

PROCEDURE

1. INSTALL CRANKSHAFT POSITION SENSOR

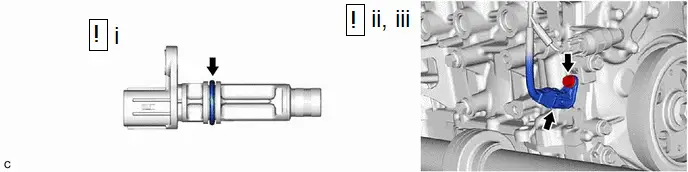

(1) Apply a light coat of engine oil to the O-ring of the crankshaft position sensor.

NOTICE:

If reusing the crankshaft position sensor, check the O-ring.

(2) Install the crankshaft position sensor to the cylinder block sub-assembly with the bolt.

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}

(3) Connect the crankshaft position sensor connector.

2. INSPECT FOR ENGINE OIL LEAK

Click here

3. INSTALL REAR ENGINE UNDER COVER RH
