REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during battery ECU assembly removal/installation are shown below.
Necessary Procedures After Parts Removed/Installed/Replaced Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
---|---|---|---|
Replacement of battery ECU assembly | Current sensor offset learning | HV battery status information cannot be updated |
|
CAUTION:
Click here
NOTICE:
Click here
HINT:
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
Items for which learning is completed by driving the Toyota Prius vehicle Effect/Inoperative Function when Necessary Procedure not Performed | Necessary Procedure | Link |
---|---|---|
Front Camera System | Drive the Toyota Prius vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more. |
|
Effect/Inoperative Function when Necessary Procedure not Performed | Necessary Procedure | Link |
---|---|---|
*1: w/o Power Back Door System
*2: w/ Power Back Door System | ||
Power Door Lock Control System*1
| Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. |
|
Power Back Door System*2 | Reset back door close position |
|
Air Conditioning System | After the ignition switch is turned to ON, the servo motor and expansion valve standard position is recognized. | - |
CAUTION / NOTICE / HINT

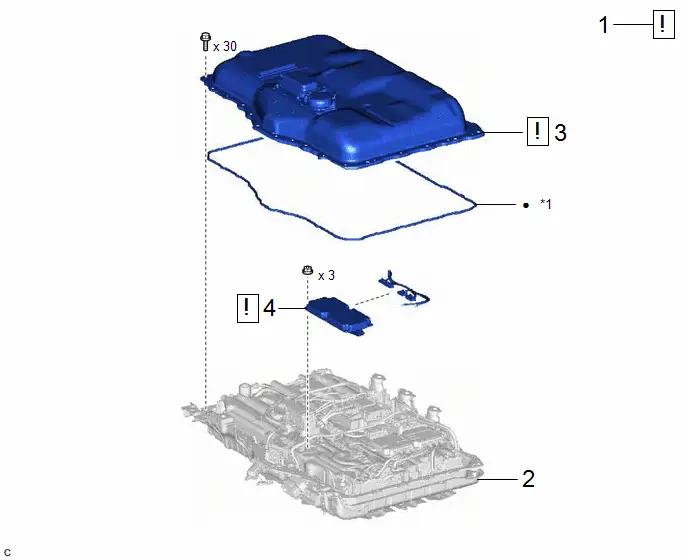

COMPONENTS (REMOVAL) Procedure | Part Name Code |
![]() |
![]() |
![]() | |
---|---|---|---|---|---|
1 | WHEN REPLACING BATTERY ECU ASSEMBLY | - |
| - | - |
2 | HV SUPPLY BATTERY ASSEMBLY | G9510 | - | - | - |
3 | NO. 1 TRACTION BATTERY COVER | - |
| - | - |
6 | BATTERY ECU ASSEMBLY | 89890A |
| - | - |
*1 | NO. 1 HV BATTERY SEAL | - | - |
● | Non-reusable part | - | - |
PROCEDURE
1. WHEN REPLACING BATTERY ECU ASSEMBLY
![]() | NOTICE:
|
HV battery learning values are stored in the battery ECU assembly and ECM and are used to detect malfunctions and illuminate the hybrid battery indicator light in the combination meter assembly. When either of these ECUs is replaced, the new ECU receives the HV battery learning values from the other ECU and stores them.
(a) Procedure when replacing both battery ECU assembly and ECM:
(1) Disconnect the cable from the negative (-) auxiliary battery terminal.
(2) Replace either ECU.
(3) Connect the cable to the negative (-) auxiliary battery terminal.
(4) Turn the ignition switch to ON (READY) and wait for 5 minutes or more.
(5) Turn the ignition switch off and wait for 1 minute or more.
(6) Disconnect the cable from the negative (-) auxiliary battery terminal.
(7) Replace the other ECU.
(8) Connect the cable to the negative (-) auxiliary battery terminal.
(9) Check that the ignition switch can be turned on (READY).
HINT:
If the battery ECU assembly and ECM are replaced at the same time without following the above procedure, replace either of the ECUs with its original one and then replace it again by following the above procedure. If the correct procedure is not followed, perform the procedure again from the beginning.
2. REMOVE HV SUPPLY BATTERY ASSEMBLY
Click here
3. REMOVE NO. 1 TRACTION BATTERY COVER
![]() | Click here
|

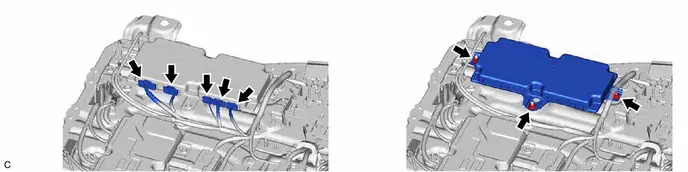

4. REMOVE BATTERY ECU ASSEMBLY
![]() | CAUTION: Be sure to wear insulated gloves and protective goggles. NOTICE: If the battery ECU assembly has been struck or dropped, replace it. |
