Toyota Prius: Back-up Light Assembly

• Removal
• Disassembly
• Inspection
• Reassembly
• Installation

Removal

REMOVAL

CAUTION / NOTICE / HINT

CAUTION / NOTICE / HINT

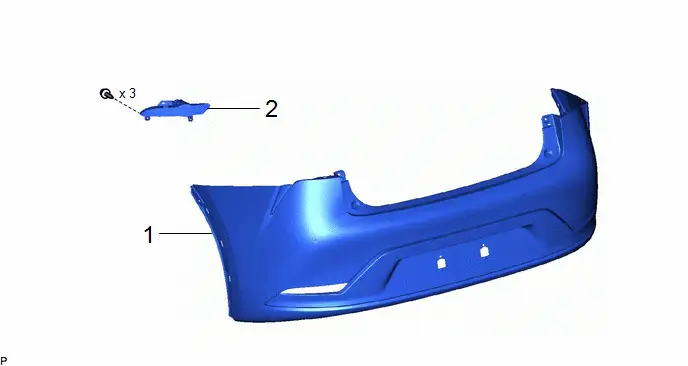

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	REAR BUMPER ASSEMBLY	-	-	-	-
2	BACK-UP LIGHT ASSEMBLY	81680	-	-	-

PROCEDURE

1. REMOVE REAR BUMPER ASSEMBLY

Click here

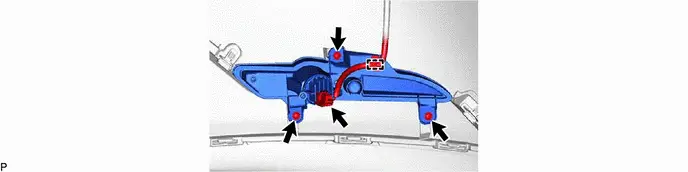

2. REMOVE BACK-UP LIGHT ASSEMBLY

Disassembly

DISASSEMBLY

CAUTION / NOTICE / HINT

CAUTION / NOTICE / HINT

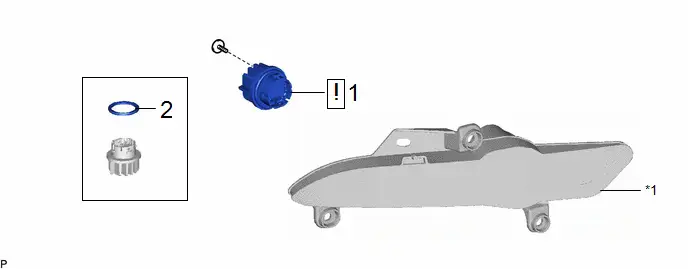

COMPONENTS (DISASSEMBLY)

Procedure		Part Name Code
1	BACK-UP LIGHT LED	8158AG		-	-
2	BACK-UP LIGHT BODY GASKET	81684	-	-	-

*1

BACK-UP LIGHT LENS AND BODY

-

-

PROCEDURE

1. REMOVE BACK-UP LIGHT LED

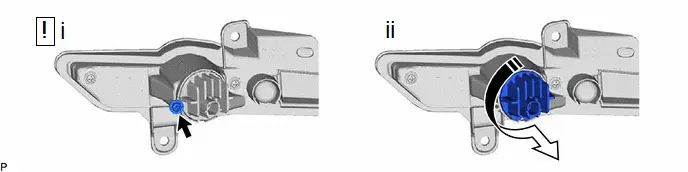

Remove in this Direction

-

-

(1) Using a T20H "TORX" driver, remove the "TORX" screw.

(2) Remove the back-up light LED as shown in the illustration.

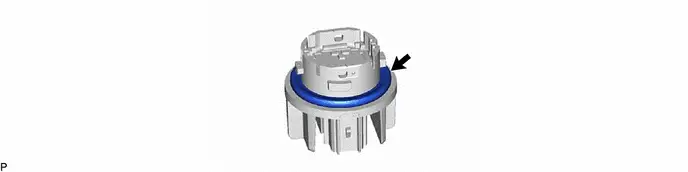

2. REMOVE BACK-UP LIGHT BODY GASKET

Inspection

INSPECTION

PROCEDURE

1. INSPECT BACK-UP LIGHT ASSEMBLY LH

(a) Apply auxiliary battery voltage to the back-up light assembly LH and check that the light comes on. OK: Click Location & Routing(P12) Click Connector(P12) Tester Connection Specified Condition Auxiliary battery positive ( ) - P12-2 (B) Auxiliary battery negative (-) - P12-1 (E) Back-up light comes on If the result is not as specified, replace the back-up light assembly LH.

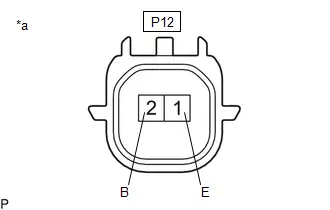

*a Component without harness connected (Back-up Light Assembly LH)

2. INSPECT BACK-UP LIGHT ASSEMBLY RH

(a) Apply auxiliary battery voltage to the back-up light assembly RH and check that the light comes on. OK: Click Location & Routing(P13) Click Connector(P13) Tester Connection Specified Condition Auxiliary battery positive ( ) - P13-2 (B) Auxiliary battery negative (-) - P13-1 (E) Back-up light comes on If the result is not as specified, replace the back-up light assembly RH.

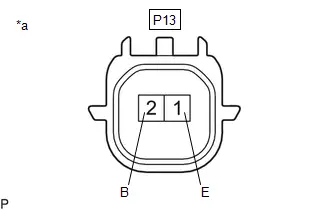

*a Component without harness connected (Back-up Light Assembly RH)

Reassembly

REASSEMBLY

CAUTION / NOTICE / HINT

CAUTION / NOTICE / HINT

COMPONENTS (REASSEMBLY)

Procedure		Part Name Code
1	BACK-UP LIGHT BODY GASKET	81684	-	-	-
2	BACK-UP LIGHT LED	8158AG	-	-	-

*1

BACK-UP LIGHT LENS AND BODY

-

-

PROCEDURE

1. INSTALL BACK-UP LIGHT BODY GASKET

2. INSTALL BACK-UP LIGHT LED

Installation

INSTALLATION

CAUTION / NOTICE / HINT

CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	BACK-UP LIGHT ASSEMBLY	81680	-	-	-
2	REAR BUMPER ASSEMBLY	-	-	-	-

PROCEDURE

1. INSTALL BACK-UP LIGHT ASSEMBLY

2. INSTALL REAR BUMPER ASSEMBLY

Click here
