Toyota Prius: Back Door Opener Switch
Removal
REMOVAL
CAUTION / NOTICE / HINT

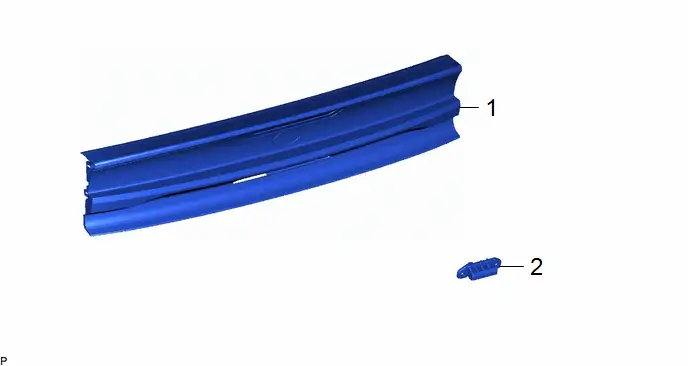

COMPONENTS (REMOVAL)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | REAR LIGHT ASSEMBLY | - | - | - | - |
| 2 | BACK DOOR OPENER SWITCH ASSEMBLY | 84840G | - | - | - |
PROCEDURE
1. REMOVE REAR LIGHT ASSEMBLY
Click here

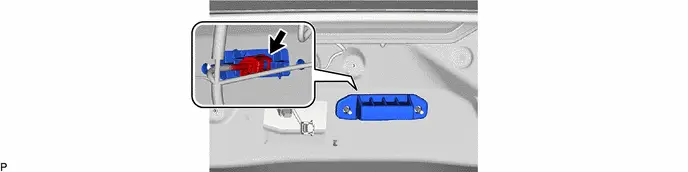

2. REMOVE BACK DOOR OPENER SWITCH ASSEMBLY
Inspection
INSPECTION
PROCEDURE
1. INSPECT BACK DOOR OPENER SWITCH ASSEMBLY

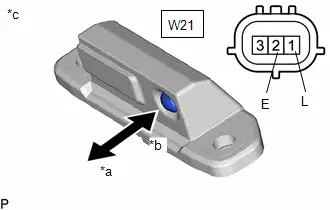

| (a) Check the operation of the back door opener switch. (1) Measure the resistance according to the value(s) in the table below. Standard Resistance:  Click Location & Routing(W21) Click Connector(W21)
If the result is not as specified, replace the back door opener switch assembly. |
|

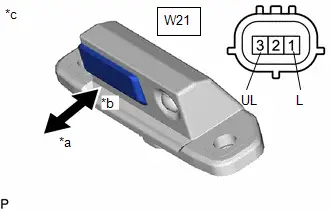

| (b) Check the operation of the back door lock switch. (1) Measure the resistance according to the value(s) in the table below. Standard Resistance:  Click Location & Routing(W21) Click Connector(W21)
If the result is not as specified, replace the back door opener switch assembly. |
|
Installation
INSTALLATION
CAUTION / NOTICE / HINT
COMPONENTS (INSTALLATION)
| Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
| 1 | BACK DOOR OPENER SWITCH ASSEMBLY | 84840G | - | - | - |
| 2 | REAR LIGHT ASSEMBLY | - | - | - | - |
PROCEDURE
1. INSTALL BACK DOOR OPENER SWITCH ASSEMBLY
2. INSTALL REAR LIGHT ASSEMBLY
Click here
Toyota Prius (XW60) 2023-2025 Service Manual
Back Door Opener Switch
