Toyota Prius: 2zr-fxe Auxiliary Battery

• Removal
• Installation

Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during auxiliary battery removal/installation are shown below.

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Front Camera System	Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.

Learning completes when vehicle is operated normally

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
*1: w/o Power Back Door System *2: w/ Power Back Door System
Power Door Lock Control System*1 Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.
Power Back Door System*2	Reset back door close position
Air Conditioning System	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

CAUTION / NOTICE / HINT

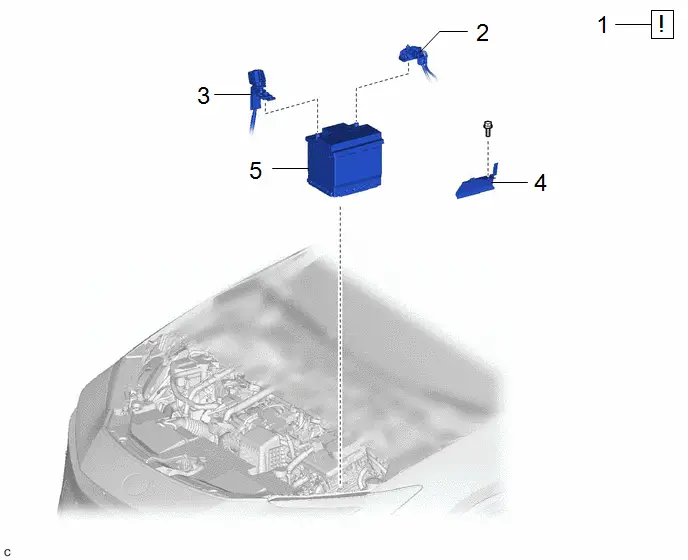

COMPONENTS (REMOVAL)

Procedure		Part Name Code
1	PRECAUTION	-		-	-
2	NEGATIVE AUXILIARY BATTERY TERMINAL	-	-	-	-
3	POSITIVE AUXILIARY BATTERY TERMINAL	-	-	-	-
4	NO. 2 BATTERY CLAMP	74482	-	-	-

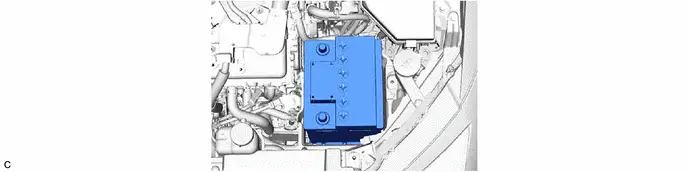

5	AUXILIARY BATTERY	-	-	-	-

PROCEDURE

1. PRECAUTION

NOTICE: After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal. Click here When replacing the auxiliary battery, use a new auxiliary battery of the same dimensions and same capacity or more from the same class at a 20-hour rate.

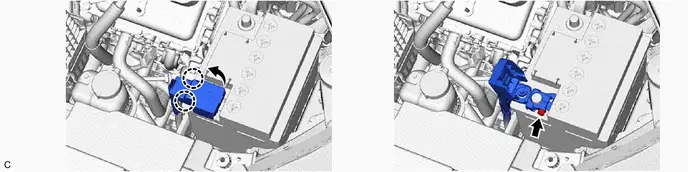

2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

3. DISCONNECT CABLE FROM POSITIVE AUXILIARY BATTERY TERMINAL

4. REMOVE NO. 2 BATTERY CLAMP

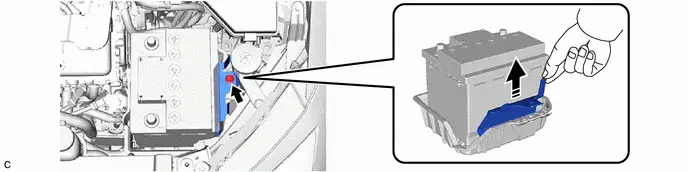

5. REMOVE AUXILIARY BATTERY

Installation

INSTALLATION

CAUTION / NOTICE / HINT

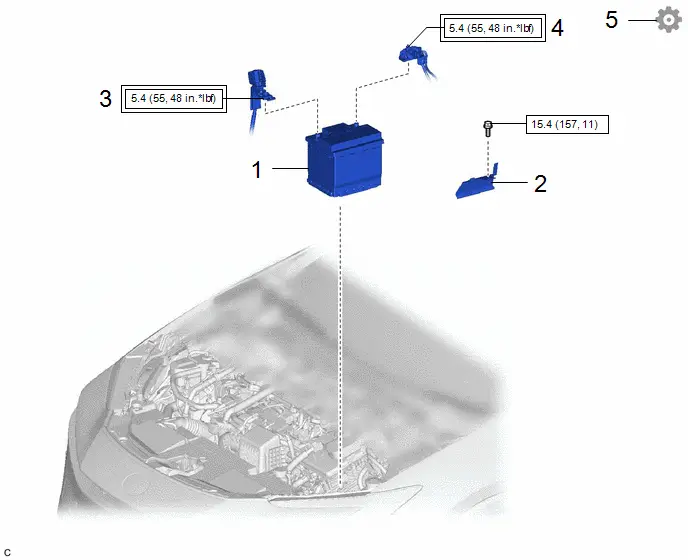

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	AUXILIARY BATTERY	-	-	-	-
2	NO. 2 BATTERY CLAMP	74482	-	-	-
3	POSITIVE AUXILIARY BATTERY TERMINAL	-	-	-	-
4	NEGATIVE AUXILIARY BATTERY TERMINAL	-	-	-	-
5	INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL	-	-	-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

PROCEDURE

1. INSTALL AUXILIARY BATTERY

2. INSTALL NO. 2 BATTERY CLAMP

Torque:

15.4 N·m {157 kgf·cm, 11 ft·lbf}

3. CONNECT CABLE TO POSITIVE AUXILIARY BATTERY TERMINAL

Torque:

5.4 N·m {55 kgf·cm, 48 in·lbf}

4. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

Torque:

5.4 N·m {55 kgf·cm, 48 in·lbf}

5. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click here
